Universal Jumbo Toilet Tissue Dispenser

Site Location

Frost’s 166 universal jumbo toilet tissue dispenser offers a durable and practical solution for high volume areas. Typically, the dispenser is used in schools/universities, restaurants, malls, office buildings, condominiums, fitness facilities, and recreation centres. This product was engineered to be easy to use and maintain without sacrificing the strength needed to last in busy environments.

Features

• Straightforward design makes this product user friendly and also reduces the risk of product malfunction
• Non-proprietary dispenser which can lead to cost savings for end users and property managers
• Easily accessible front loading
• Comes standard with keyed tumbler lock to reduce pilferage
• Durable construction of Canadian steel to help ensure a long-lasting product life

Dispensing

This product dispenses toilet paper manually through the bottom of the unit. The dispenser is also universal; meaning, the unit is non-proprietary and dispenses paper from standard commercial paper producers. This allows the end user to avoid getting locked into paper supply contracts and should save them money on their janitorial supplies. To load this product, unlock and lift the front cover. Place a jumbo toilet paper roll on the exposed steel bar. Replace the lid and lock.

Capacity

• This dispenser accepts a jumbo toilet tissue roll with a maximum diameter of 25.4cm (10”) and a spindle diameter of 5.7cm (2 ¼”) to 7.6cm (3”).

Materials

• Front: 22 gauge steel with white epoxy powder coated finish
• Back: 22 gauge galvanized steel

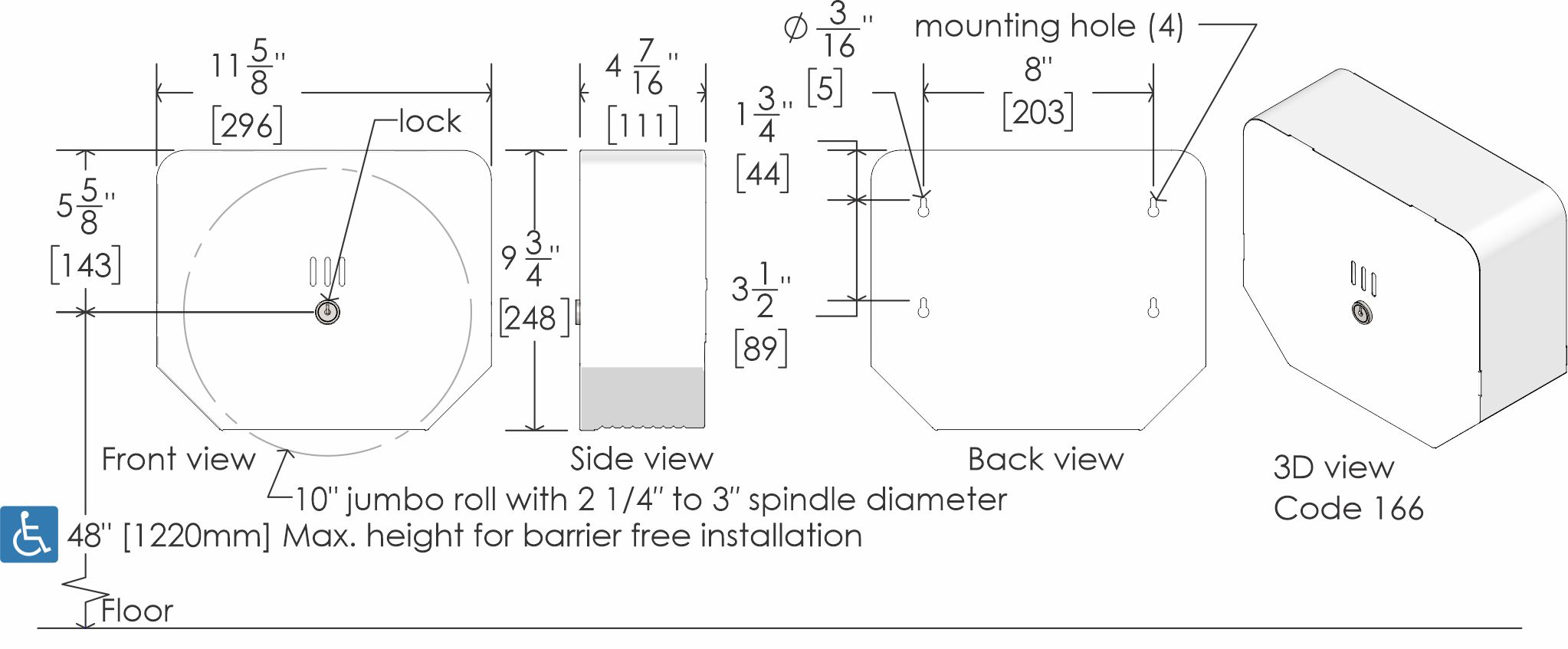

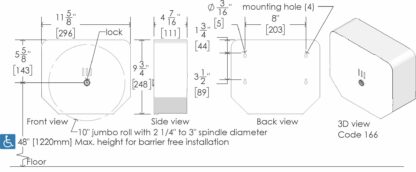

Product Dimensions

• 24.8cm H x 29.5cm W x 11.2cm D (9.75” H x 11.6” W x 4.4” D)

Product Weight

• 1.4 kg (3 lbs)

Installation Guidelines

For unrestricted access, bottom of the unit to floor must be between 38.1cm to 121.9cm (15″ to 48″). This dispenser comes with four standard combination style screws. Mark mounting holes against the mounting surface using a pencil and level. Use a screwdriver or power drill to drill screws in the desired mounting surface and attach the dispenser. Please note that it is recommended that all installations be conducted by a qualified tradesperson. Please read and follow any additional installation guidelines provided with the products.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.
